Product

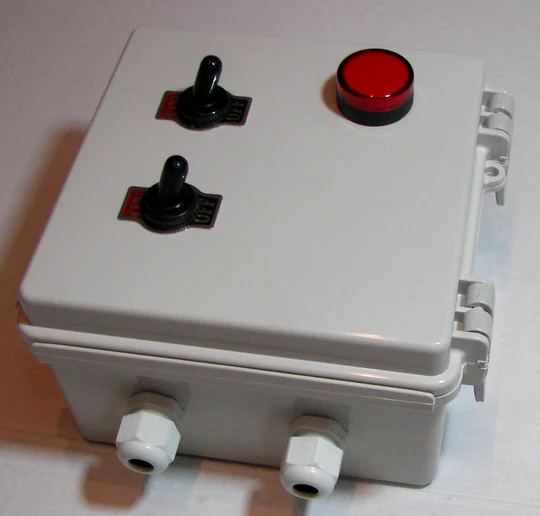

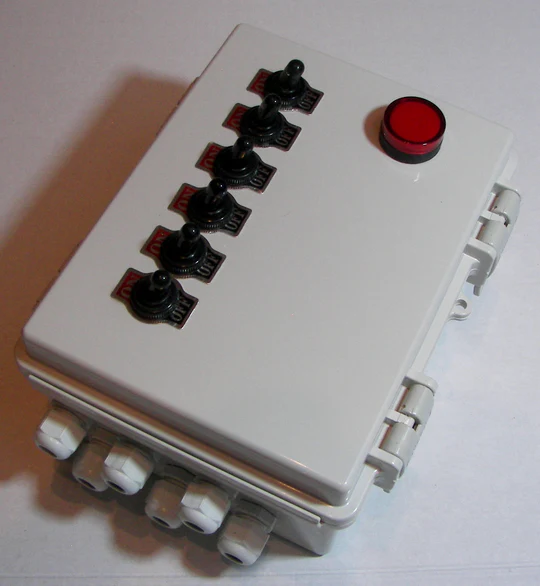

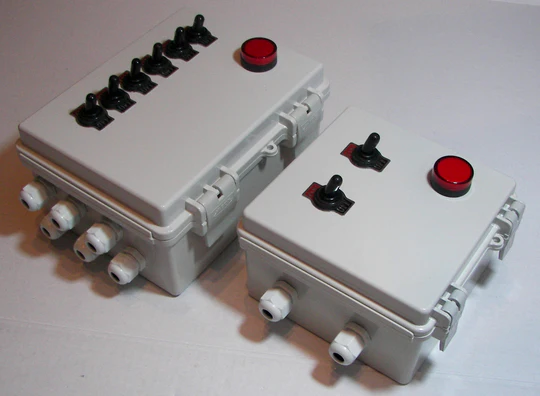

Outdoor Rated Power Control Switch Boxes

Features

• Models with 2, 3, 4, 5 or 6 Switch Positions

• Toggle Switches with Rubber Boots

• Rugged Outdoor Rated Plastic Enclosure

• Re-settable Internal Circuit Breaker

• Includes Stainless Steel Mounting Feet

• Pre-installed PG11 Cable Glands

• Includes Red “Power On” Pilot Light

Applications

• Pond or Garden Lighting and Equipment

• Work Shop, Farm or Nursery

Description

The OSWB1 Series of Outdoor Rated Power Control Boxes have been designed for use in either outdoor or indoor applications. Ideal for pond and garden electrical connections allowing you to control 2, 3, 4, 5 or 6 separate electrical power items. This weather resistant power controller is specifically designed to protect your switch wiring against the elements. A good choice for providing power control in damp, dusty environments such as gardens, workshops, nurseries or farms. These units are designed for use with normal waterproof electrical cable. They enable you to safely power up to 6 electrical items outdoors from one cable. These are ideal for connecting your pond pump, filter or lighting to one power supply. Each switch box has a PG11 cable gland for the power inlet and all power outlets pre-installed on the box. Each power outlet has its own switch for maximum control. The switches are pre-wired and connected to terminal blocks inside the unit to provide easy wiring.

Specifications

Enclosure Rating: NEMA 4X
Enclosure Material: PC/PVC Blended Plastic
Internal Circuit Breaker: Re-settable (See Ordering table)
Input/output Glands: PG11 (for 0.19 to 0.39” cables)
Switch Operation: 2-Position Toggle, On / Off
Operating Voltage: 100 -125V AC, 50/60Hz
Max Temperature: -40 to175 ºF (-40 to 80 ºC)
Enclosure Dimension: See Ordering Table

 Available Models
